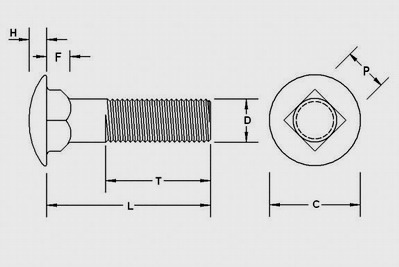

Bolt Diameter |
D |
C |
H |
P |
F |
|
Body Diameter |
Head
Diameter |
Head
Height |
Square
Width |
Square
Depth |
|
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
|
3/8 |
0.388 |
0.360 |
0.844 |
0.782 |
0.208 |
0.188 |
0.388 |
0.368 |
0.219 |
0.188 |
|
1/2 |
0.515 |
0.483 |
1.094 |
1.032 |
0.270 |
0.250 |
0.515 |
0.492 |
0.281 |
0.250 |
|
5/8 |
0.642 |
0.605 |
1.344 |
1.219 |
0.344 |
0.313 |
0.642 |
0.616 |
0.344 |
0.313 |
|
3/4 |
0.768 |
0.729 |
1.594 |
1.469 |
0.406 |
0.375 |
0.768 |
0.741 |
0.406 |
0.375 |
|
7/8 |
0.895 |
0.852 |
1.844 |
1.719 |
0.469 |
0.438 |
0.895 |
0.865 |
0.469 |
0.438 |
|
1 |
1.022 |
0.976 |
2.094 |
1.969 |
0.531 |
0.500 |
1.022 |
0.990 |
0.531 |
0.500 |
|
1-1/4* |
1.277 |
|
2.850 |
|
0.531 |
0.500 |
1.250 |
|
0.625 |
|
Dimensions per ASME B18.5 1990 (R 1998) cover
diameters up to 1". Bolts over 1" use custom head
dimensions. |
|
|
|
 |
